CORMAC, INC. Construction Equipment

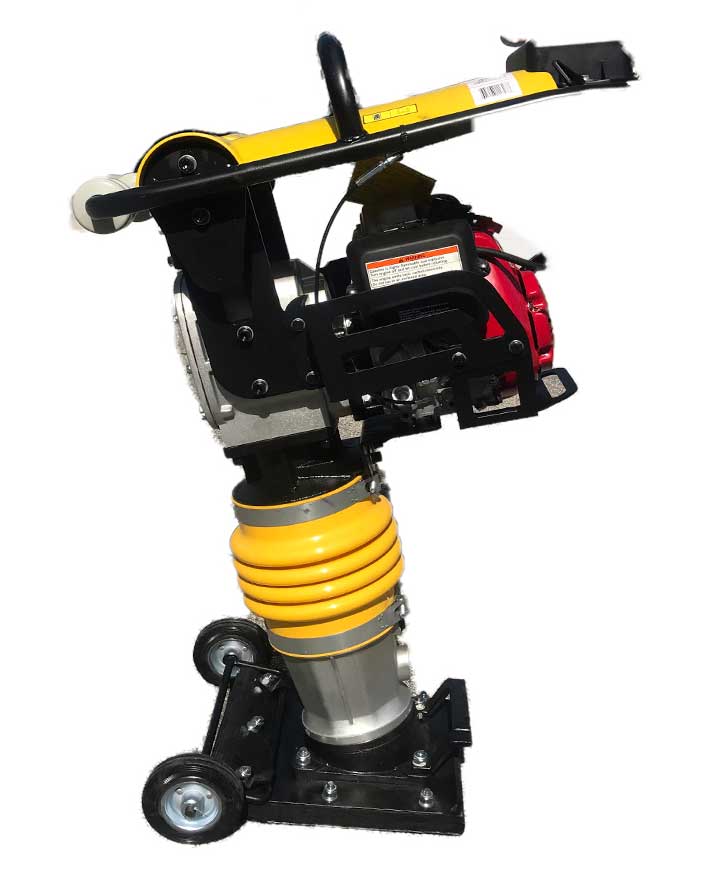

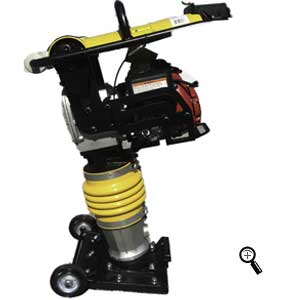

Tamping Rammers

Low cost to maintenance and usage, reliable durability.

Feature

For narrow trenches, all-purpose high productivity, and maximum compaction applications.
Convenient lifting handles and optional wheels that attach to the handle provide easier mobility in or out of truck beds.
Exclusive modular design cuts service time in half, reduces lifetime cost of ownership
Totally enclosed oil bath system lubricates throughout and eliminates daily greasing. Oil sight gauge allows a quick, visual oil level check.
Convenient lifting handles and optional wheels that attach to the handle provide easier mobility in or out of truck beds.

We reserve the right to improve or withdraw the specification or products without prior notice.

SPECIFICATIONS	RM80H
Engine	Air cooled, 4 cycle, single cylinder
Engine Type	Gasoline Honda GX100
Power Hp ( Kw )	3Hp ( 2.23
Impact forceKn	10
Percussion rate r/min	450-660
Compaction force Lbs/Ft	3350
Efficiency Ft/h ( Mts/h )	656 ft/h ( 200 )
Max travel speed Ft/min ( mts/min )	29.5-39.3 Ft/min ( 9-12 )
Plate size Inch ( cm ). L x W	13” x 11.4” ( 33 x 29 )
GW Lb ( Kg )	205Lb( 93 )
NW Lb ( Kg )	176Lb( 80 )
Packaging size Inch/cm L x W x H	31.1” x 18.9” x 45.3” ( 79 x 48 x 115 )
