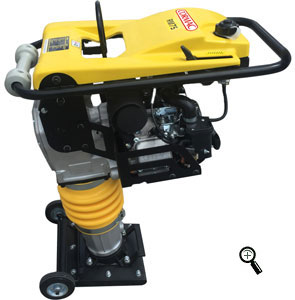

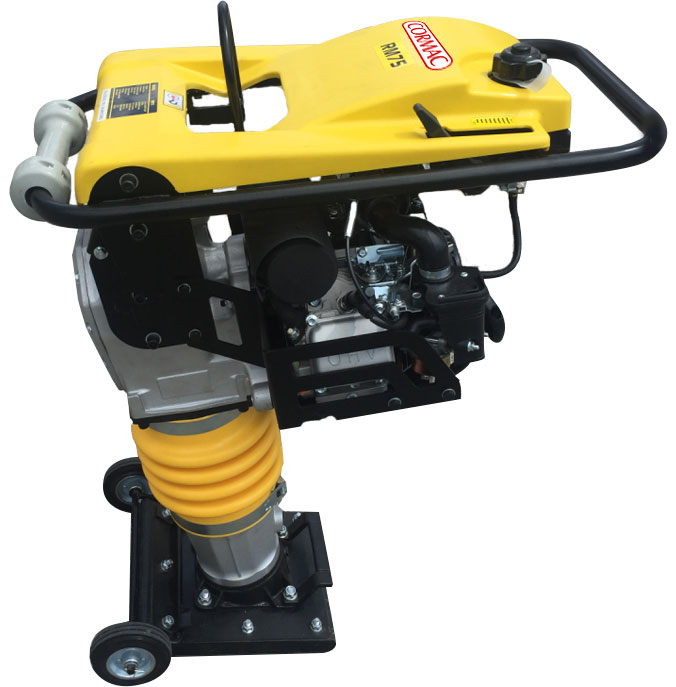

Tamping Rammers

Low cost to maintenance and usage, reliable durability.

Feature

For narrow trenches, all-purpose high productivity, and maximum compaction applications.
Convenient lifting handles and optional wheels that attach to the handle provide easier mobility in or out of truck beds.
Exclusive modular design cuts service time in half, reduces lifetime cost of ownership
Totally enclosed oil bath system lubricates throughout and eliminates daily greasing. Oil sight gauge allows a quick, visual oil level check.
Convenient lifting handles and optional wheels that attach to the handle provide easier mobility in or out of truck beds.

We reserve the right to improve or withdraw the specification or products without prior notice.

SPECIFICATIONS	RM75
Engine	Single cylinder 4 cycle air cooled
Engine Type	Kapa 168F
Power Hp ( Kw )	6.5 - ( 4.84 )
Operation mass Lbs ( Kg )	167 - ( 76 )
Vibration Frequency VPM	560 - 620
Compaction Depth In ( cm )	19.6 – 21.5 - ( 50 - 55 )
Impact Force kN	14
Travel speed Ft/mt	32.8 -42.6 ft/min - ( 10 x 13 mts/min )
Plate size L x W inch ( cm )	13.3 x 11.2 - ( 34 x 28.5 )
Percussion rate (ramming frequency):	450-650 times/min
Unit dimensions aprox L x W x H	18” x 28.75” x 43 H
