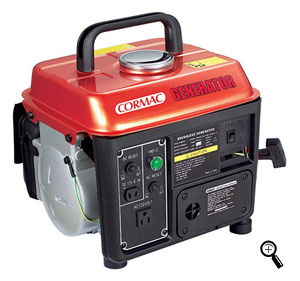

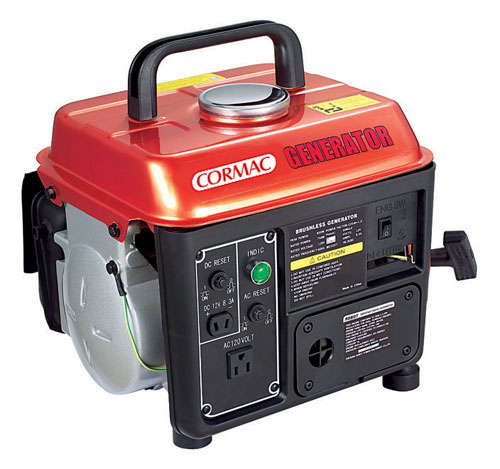

Gasoline Generator Model ST1200 |
 |
|
||||
|
|
||||
Gasoline Generator Model ST1200 |
| SPECIFICATIONS | MODEL ST1200 | |
| GENERATOR | Type | Brush, Revolving Magnetic Field, 2 Poles – Single Phase |
| Frame | - | |
| Rate AC Output | 650 W / 850 W | |
| Max Ac Output | 850 W / 1000 W | |
| Frequency | 50Hz / 60 Hz | |
| Voltage | 110 / 120 – 220 / 240V | |
| Voltage regulator | Condenser | |
| Power Factor | 1.0 | |
| ENGINE | Model | Kapa 1E45F |
| Type | 2 Stroke, force air cooled single cylinder | |
| Bore x Stroke mm ( Inch ) | 45 x 42 mm ( 1.77 x 1.65 inch ) | |
| Displacements | 63 ml | |
| Recommended fuel | Unleaded Gasoline | |
| Fuel tank capacity Lit ( Gal ) | 4.2 Lit ( 1.10 Gal ) | |
| Fuel consumption | ≤ 544g / Kw - hour | |
| Engine oil capacity Lit ( Gal ) | Gasoline and oil mixing ratio 40: 1 | |
| Start Mode | Recoil | |
| STANDARD FEATURES | Indicator light | yes |
| Ac circuit breaker | yes | |
| DC socket ( 12V/10 Amp ) | yes | |
| DC circuit breaker | yes | |
| Cont working time | 5..9 – 6..3 Hours | |
| Noise Level @ 7 meters ( 22.9 feet ) | 60 - 61 dB ( A ) | |
| Packing dimension L x W x H mm ( inch ) | 405 x 345 x 355 mm ( 15.94 x 13.58 x 13.97 inch ) | |
| SET | Net weight Kg ( Lb ) | 17 Kg ( 37.47 Lb ) |
| Gross weight kg ( Lb ) | 18 Kg ( 39.68 Lb ) |
We reserve the right to improve or withdraw the specification or products without prior notice.
