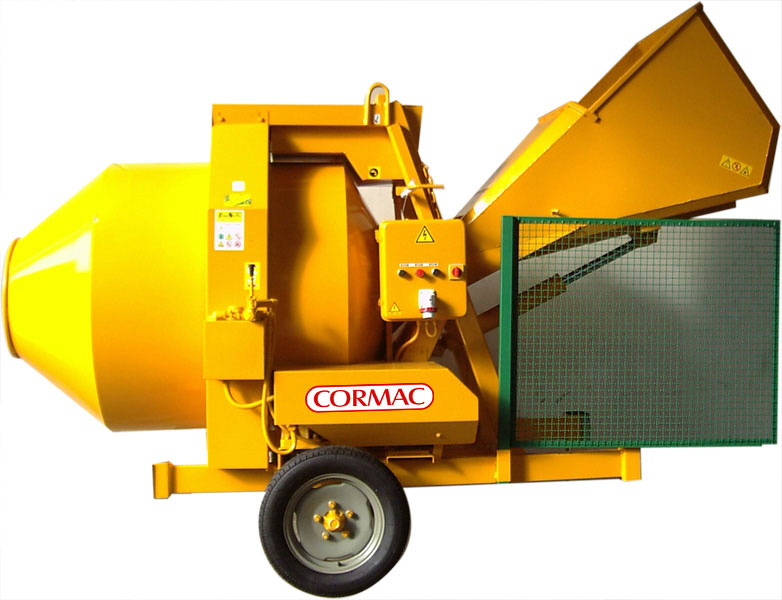

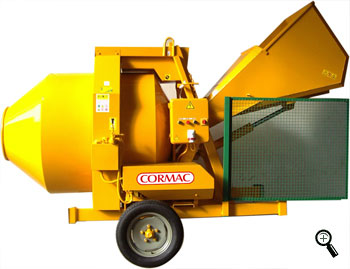

CORMAC hydraulic cement mixer with reversing drum, designed for productions with very high yields. A machine that works through hydraulic mechanisms and simplifies the user's work. Large in size, fast, it is a guarantee for the processing of coarse material.

The main characteristics of the hydraulic cement mixers with reversing drum are: considerable size, speed of production, thickness of their drum, perfect shape of the blades for processing coarse material or mixtures with larger diameter aggregates.

The optimal mixing of the material is ensured by the particular shape and disposition of the blades, the drum rotating in both directions allows mixing by turning in one direction and the discharge of the material in the other. Various optional accessories are available for this model to facilitate loading and for greater precision in production.

FEATURES MODEL S 360 MODEL S 520 MODEL S 750 MODEL S 1000 MODEL S 1200 MODEL S 1500
Drum Capacity 350 lt 500 lt 750 lt 1000 lt 1200 lt 1500 lt
Hopper capacity 350 lt 500 lt 750 lt 1000 lt 1200 lt 1500 lt
Work Capacity 280 lt*
*variable data according to the type of material used		 410 lt*
*variable data according to the type of material used		 500 lt*
*variable data according to the type of material used		 650 lt*
*variable data according to the type of material used		 800 lt*
*variable data according to the type of material used		 1000 lt*
*variable data according to the type of material used
Water Tank Capacity 82 lt
(also available a tank of 100 lt or 130 lt as optional)		 82 lt
(also available a tank of 100 lt or 130 lt as optional)		 82 lt
(also available a tank of 100 lt or 130 lt as optional)		 100 lt
(also available a tank of 130 lt as optional)		 100 lt
(also available a tank of 130 lt as optional)		 100 lt
(also available a tank of 130 lt as optional)
Mixing per Hour N. 36 N. 31 N. 31 N. 30 N. 30 N. 30
Electric motor HP 4 HP 5.5 HP 7.5 HP 10 HP 10 HP15
Diesel engine HP10 HP 19 HP 21 HP 23 HP 28 HP 30
Weight with electric motor 840 Kg 1280 Kg 1380 Kg ---- --- ---
Weight with Diesel Engine 700 Kg 1150 Kg 1250 Kg 1450 Kg 1590 Kg 1690 Kg
Length 260 cm 300 cm 345 cm 350 cm 350 cm 360 cm
Width 190 cm 200 cm 200 cm 200 cm 210 cm 220 cm
Height 280 cm 330 cm 370 cm 340 cm 340 cm 340 cm

We reserve the right to improve or withdraw the specification or products without prior notice.
