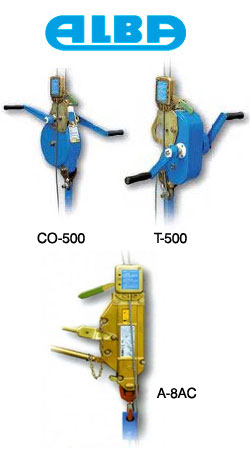

Hanging & Manual Scaffolding Models T-500 / CO-500 / A-8AC Every winch must be provided as CE Certificate ( Dir 89/392 CEE ) with the safety device for a second cable. The T-500 features: SAFETY: Three retention brakes prevent the cable from slipping. The handle does not turn in the opposite direction to the hoisting handle unless this movement is made on purpose to bring the load down. LONG LASTING – MINIMUM MAINTENANCE: Drums with steel crown gears. Bushing – mounted shafts with special bearings. Special guides made in material resistant to wearing. The CO-500 features: SAFETY: Retention latch ( acts continuously on the internal mechanism blocking the descent ). LONG LASTING: The main components of the hoist are hermetically sealed The A-8AC features ABSOLUTE SAFETY: Impossible to unlock when loaded ( patented ) Impossible dangerous maneuvers to be performed due to incorrect use. Protection against overloads. UNBLOCKING: To unblock the hoist it is necessary to take the load off and remove the anchoring pin of the stirrup.
|
Model | Load Capacity |
Cable Min/Max lengthFt ( mts ) |
Wire rope advance |
Net weight with 30 mts (98.43 feet ) cable and safety device | Package dimensions Inch ( mm ) |
T-500 | 1122 Lb ( 509 Kg ) | 98.43 Ft /** |
1.57 inch |
75 Lb***** |
18.9 x 13.38 x 9.44
inch |
CO-500 | 1122 Lb ( 509 Kg ) | 98.43 - 164 Ft ***/ **** |
0.98 – 2.56 inch |
53 Lb***** |
18.9 x 13.38 x 11.41* inch |
A-8AC | 1122 Lb ( 509 Kg ) | 98.43 Ft /** |
2.13 inch |
24.25 Lb***** |
17.3 x 3.54 x 11.02 inch |
** = From 30 meters, multiples of 5 meters. *** = Between 30 meters and 50 meters. **** = The last 2 meters are colored red to notice that they should not be uncoiled more.
*****= Always reduce 3 meters from cable total length to calculate usuable length.
We reserve the right to improve or withdraw the specification or products without prior notice.
